MAXXECU Expansion Module
CAN-based io expansion designed to add additional inputs and outputs to any MaxECU system.
CAN communication
Superseal 1.0 connector
IP68 water-protection
Analog and PULSE inputs
12V and H-bridge outputs
2 / 5

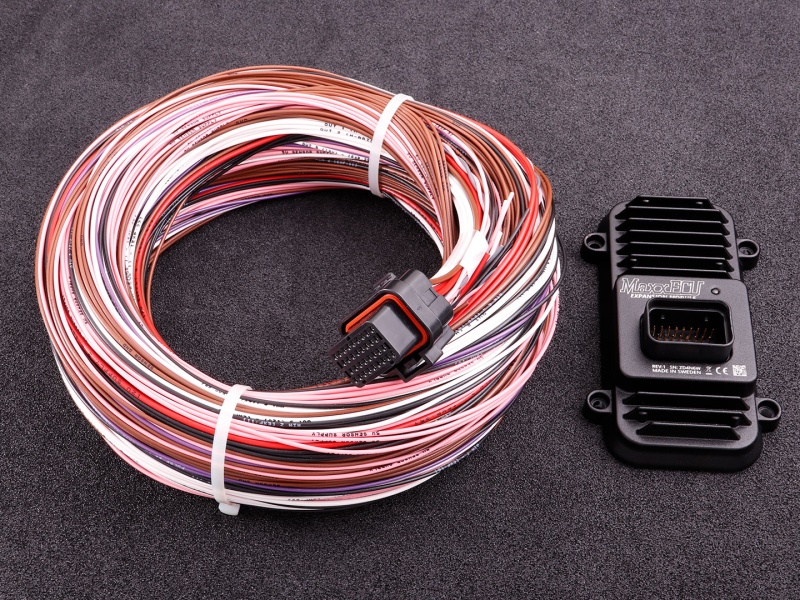

MaxxECU Expansion Module
Compatible with everything from the compact MaxxECU MINI to the latest GEN2 ECU series. Housed in a compact IP-68 powder coated aluminum case with a SuperSeal 1.0 connector, it’s built for reliability in the harshest environments. The Expansion Module communicates over the MaxECU CAN network and appears directly inside MTune for seamless integration and configuration.
Selected features
Extends ANY MaxxECU over CAN
4 PULSE inputs
Black powder-coated aluminium case with IP68 water-protection rating.
12 analog 0–5V inputs
Superseal 1.0 connector
4 12V outputs
6-22V operating voltage
4 H-bridges
Extends ANY MaxxECU over CAN with the following inputs and outputs:
- 4 PULSE inputs
- 12 analog 0–5V inputs
- 4 12V outputs
- 2 H-bridges
