FULL SPECIFICATIONS
Explore the complete feature list and software capabilities of MaxxECU GEN2 RACE.
Target Engines of MaxxECU GEN2 RACE
- All 1-12 cylinder engines (2/4-stroke)
- Up to 12 cylinders fully sequentially
- Up to 12 cylinders in wasted spark
MaxxECU GEN2 RACE inputs
- 8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
- 24 Analog inputs (selectable pullups)
- 8 Exhaust Gas Temperature inputs (TYPE-K)
- Dual wideband lambda (LSU 5.2/4.9/4.2)
- Dual knock sensor input
MaxxECU GEN2 RACE outputs
- 16 injectors (Peak-hold high/low impedance) / GP outputs
- 12 IGN / GP outputs (selectable +5V/12V/GND)
- 8 GP Outputs (GND)
- 4 GP Outputs (+12V)
- 4 GP Outputs (H-bridge/E-Throttle)
MaxxECU GEN2 RACE technical
- Superseal 1.0 connectors
- 550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable, with BSP 1/8 thread
- 3-axis accelerometer (up to 8 G)
- ARM dual core CPU
- 6-22V operating voltage
- 16GB internal log capacity, 1000Hz, all 2000+ channels
- USB-C 480mbit/s (MTune PC communication)
- USB-C 12mbit/s (tablet charging)
- WIFI communication with MTune
- Bluetooth connectivity with MDash
- Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control
- Resolution on ignition: 0.1 degrees
- Resolution on injectors: 0.001 ms
- Performs fuel and ignition calculations 3,000 times per second.
- 200Hz sampling rate on all EGT inputs
- 2000Hz sampling rate on analog/digital inputs
- Weight: 700g
- 240x138x35mm including protruding connectors
- Black powder-coated aluminium case
- All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.
Product Gallery
SEE IT IN DETAIL
Take a closer look at MaxxECU GEN2 RACE from every angle.
FULL SPECIFICATIONS
Explore the complete feature list and software capabilities of MaxxECU GEN2 TRACK.
Target Engines of MaxxECU GEN2 TRACK
- All 1-12 cylinder engines (2/4-stroke)
- Up to 8 cylinders fully sequentially
- Up to 12 cylinders in wasted spark
MaxxECU GEN2 TRACK inputs
- 6 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
- 16 Analog inputs (selectable pullups)
- Dual wideband lambda (LSU 5.2/4.9/4.2)
- Dual knock sensor input
MaxxECU GEN2 TRACK outputs
- 8 injectors (Peak-hold high/low impedance) / GP outputs
- 8 IGN / GP outputs (selectable +5V/12V/GND)
- 8 GP Outputs (GND)
- 4 GP Outputs (+12V)
- 4 GP Outputs (H-bridge/E-Throttle)
MaxxECU GEN2 RACE technical
- Superseal 1.0 connectors
- 550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable, with BSP 1/8 thread
- 3-axis accelerometer (up to 8 G)
- ARM dual core CPU
- 6-22V operating voltage
- 8GB internal log capacity, 1000Hz, all 2000+ channels
- USB-C 480mbit/s (MTune PC communication)
- USB-C 12mbit/s (tablet charging)
- WIFI communication with MTune
- Bluetooth connectivity with MDash
- Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control
- Resolution on ignition: 0.1 degrees
- Resolution on injectors: 0.001 ms
- Performs fuel and ignition calculations 3,000 times per second.
- 2000Hz sampling rate on analog/digital inputs
- Weight: 545g
- 206x138x35mm including protruding connectors
- Black powder-coated aluminium case
- All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.
Product Gallery
SEE IT IN DETAIL
Take a closer look at MaxxECU GEN2 TRACK from every angle.
Not Sure?
FIND YOUR PERFECT ECU
Compare all MaxxECU models side by side to find the perfect fit for your project.
Shop Now
GET YOUR GEN2 TRACK
The ultimate next generation ECU for professional builds.
8 Injector Outputs
8 Ignition Outputs
IP68 Waterproof
in stockMaxxECU GEN2 TRACK, unit with basic accessories in box
1 745,48€

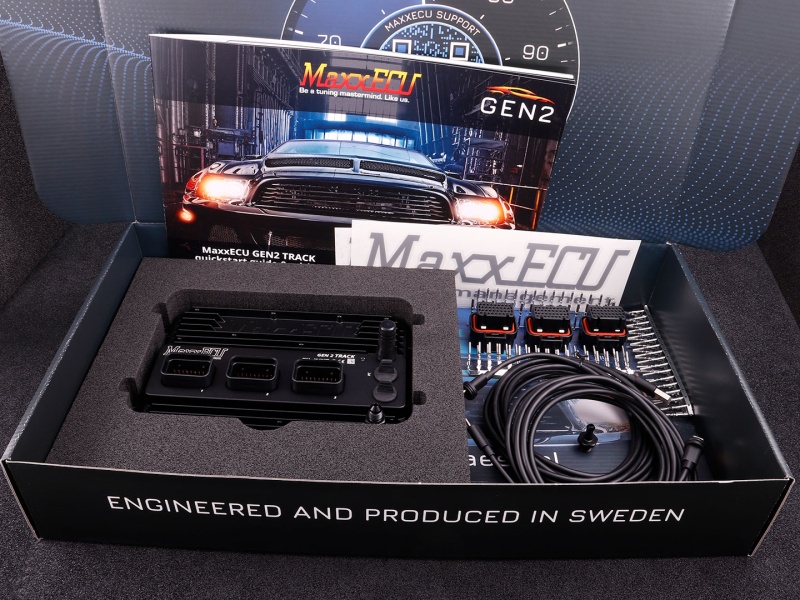

in stockMaxxECU GEN2 TRACK, with connector kit.
1 783,73€
in stockMaxxECU GEN2 TRACK, with LSU 5.2, flying lead install kit
2 038,73€
in stockMaxxECU GEN2 TRACK, with Dual LSU 5.2, flying lead install kit
2 166,23€
Need help choosing?
Our experts are here to help you find the perfect setup.
