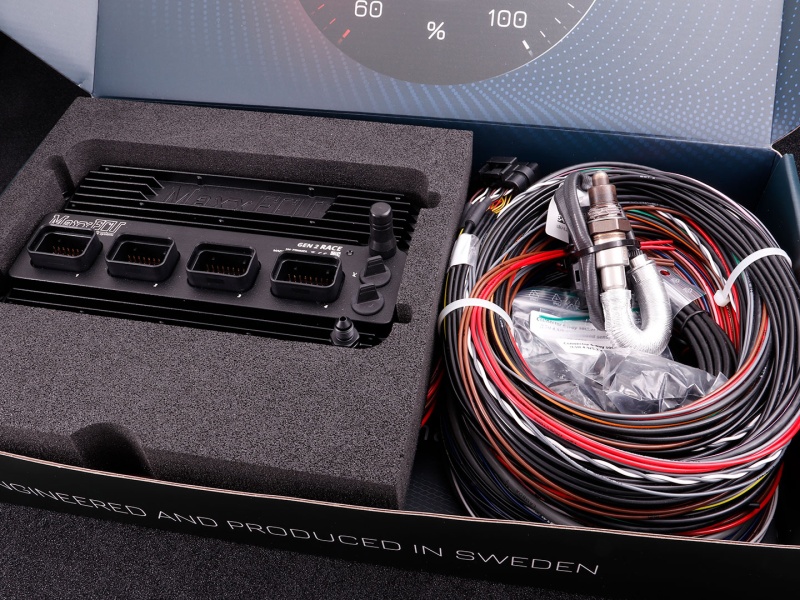

Target Engines of MaxxECU GEN2 RACE

• All 1-12 cylinder engines (2/4-stroke)
• Up to 12 cylinders fully sequentially
• Up to 12 cylinders in wasted spark

MaxxECU GEN2 RACE inputs

• 8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
• 24 Analog inputs (selectable pullups)
• 8 Exhaust Gas Temperature inputs (TYPE-K)
• Dual wideband lambda (LSU 5.2/4.9/4.2)
• Dual knock sensor input

MaxxECU GEN2 RACE outputs

• 16 injectors (Peak-hold high/low impedance) / GP outputs
• 12 IGN / GP outputs (selectable +5V/12V/GND)
• 8 GP Outputs (GND)
• 4 GP Outputs (+12V)
• 4 GP Outputs (H-bridge/E-Throttle)

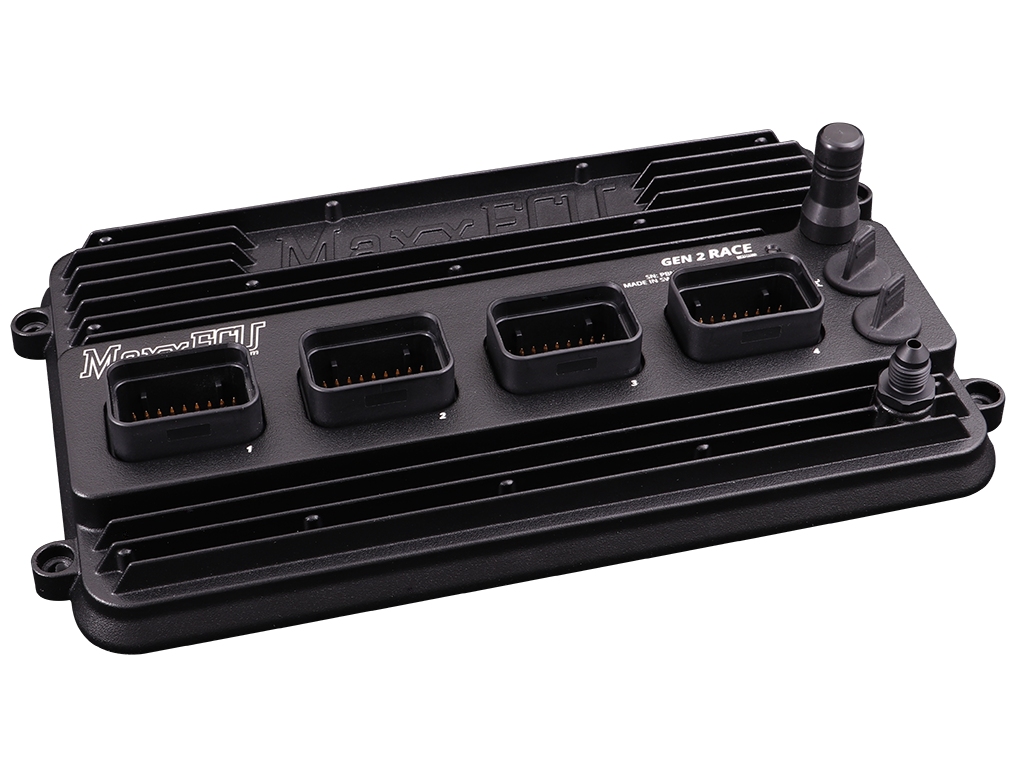

MaxxECU GEN2 RACE technical

• Superseal 1.0 connectors
• 550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable,with BSP 1/8 thread
• 3-axis accelerometer (up to 8 G)
• ARM dual core CPU
• 6-22V operating voltage
• 16GB internal log capacity, 1000Hz, all 1600+ channels
• USB-C 480mbit/s (MTune PC communication)
• USB-C 12mbit/s (tablet charging).**
• WIFI communication with MTune and MDash**
• Bluetooth connectivity with MDash
• Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control
• Resolution on ignition: 0.1 degrees
• Resolution on injectors: 0.001 ms
• Performs fuel and ignition calculations 3,000 times per second.
• 200Hz sampling rate on all EGT inputs
• 2000Hz sampling rate on analog/digital inputs
• Weight: 700g
• 240x138x35mm including protruding connectors
• Black powder-coated aluminium case
• All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.
